Plastic Recycling and Pelleting Production Line

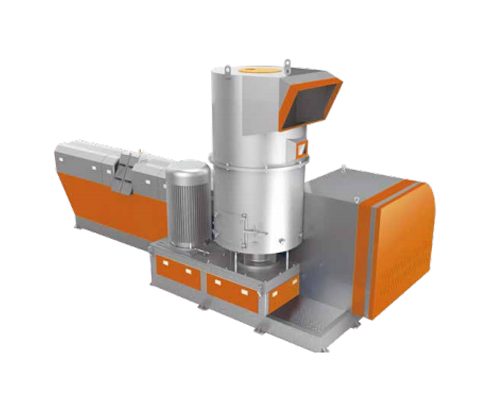

HSP Series Three Machine Integrated Pelleting Machine

This pelletizing extruder has special screw design and different configuration, it is suitable for the recycling of PP, PE, BOPP, BOPET, BOPA, PA66, etc. Dry film. The gearbox is high torque designed which attains the functions of low noise and stable operation. The surface of the screw and barrel have been special treated so that the screw and barrel are wearable, they have very good plasticization and mixing effect and the production capacity is high. The extruder has the vacuum vented design which can exhaust the vapor or gas during the production,

so that the output are more stable and the pellets are more uniform.

ModelScrew Dia(mm)L/DScrew speedMain motor power(kw)Outpt(kg/h)
HSP909036:120-15075-90200-300
HSP12012036:120-120110-132300-400
HSP15015036:120-100160-200400-500
HSP18018036:120-100250-315600-800
